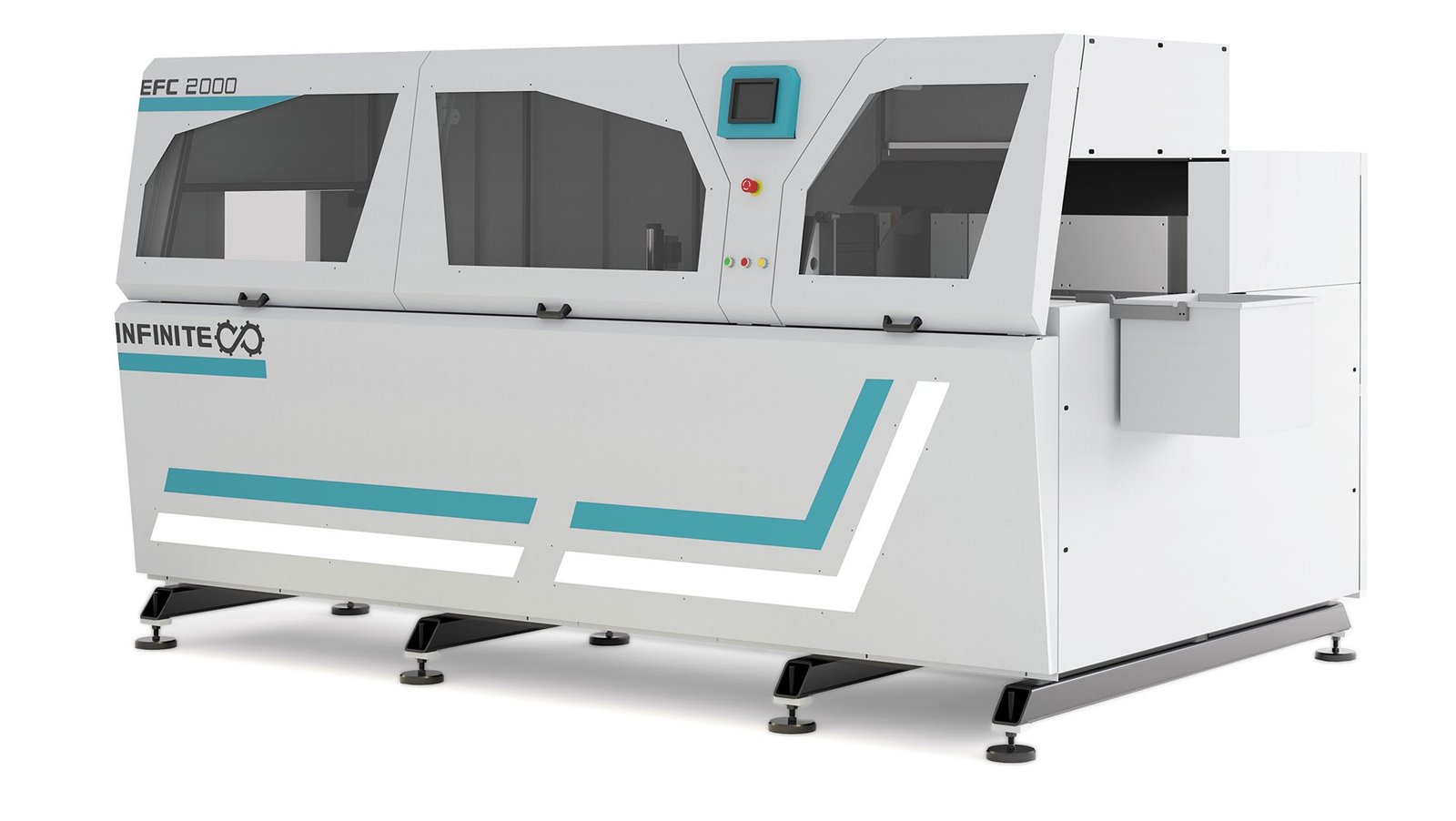

EFC 2000 & MULTI

PRECISION WEDGE CUTTING MACHINE

High precision wedge cutting, drilling, and thread tapping machine for aluminum profiles.

GET A QUOTE +

HIGH SPEED Positioning

AUTOMATIC LOADING Option

WATER-COOLED Spindle

CENTRAL GREASE Lubrication

CHIP CONVEYOR System

STANDARD FEATURES

Simultaneous capacity for drilling, tapping, and cutting aluminum profiles up to 400x200 in size
ER 25 tool holder drill system
Automatic drill bit cooling system
7" HMI screen
LAN switch
Thread cutting
LED lighting
Thread tapping system capable of tapping up to M12
With automatic tap lubrication system
Saw spindle speed adjustable up to 3000 RPM
Automatic saw cooling system
Ball screw drive system
Tap dulling feature
Automatic profile length measurement
Touch operator panel
Capability for unmanned operation and production
Ability to process aluminum profiles with a precision of 0.05 mm to desired dimensions
Can also be used solely as a large cut-off saw if needed

OPTIONS

15.6" touch PC
It has a multi-hole drilling feature

AREA OF USE

High precision wedge cutting, drilling, and thread tapping machine for aluminum profiles.

TECHNICAL SPECIFICATIONS

FEATURE	UNIT	VALUE
AXES
X Axis	mm	2500 and Above
Y Axis	mm	400
Z Axis	mm	300
POSITIONING SPEED
X Axis	mm/min	60
Y Axis	mm/min	60
Z Axis	mm/min	60
SAW - WEIGHT
Saw - Weight	Ø - KG	700 - 3500

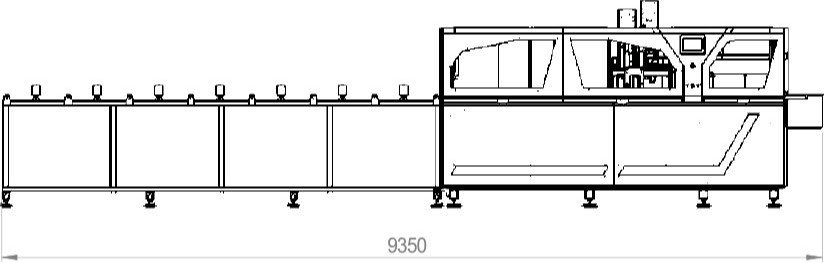

Overall Dimensions (Width, Length, Height)	mm	4000 x 2300 x 2000
