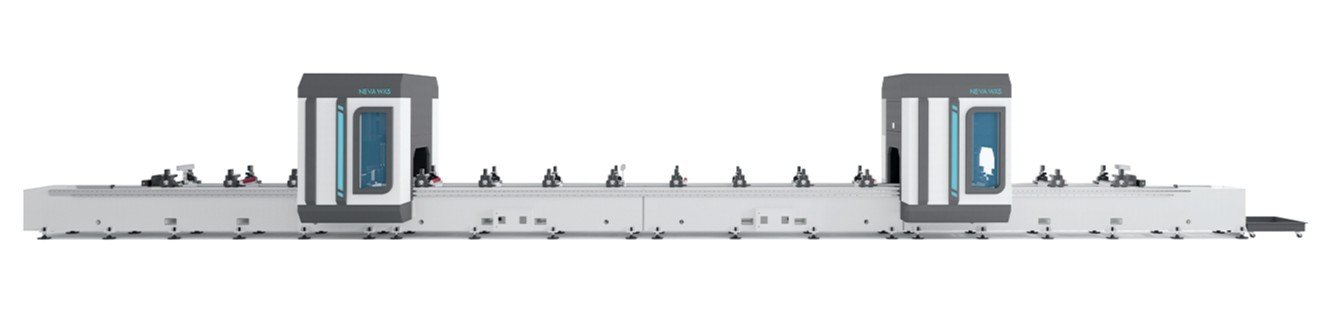

Milling, Drilling and Cutting Processes for Aluminum Profiles
Automatic vise positioning on the X-axis,
Hand P independent axes for automatic vise and workpiece reference stopping positioning,
Capacity to machine from 3 surfaces on 5 axes and from 4 surfaces on 5 axes
Independent motor-driven vises,
Wi-Fi connection handwheel,
Processor i3 (dual-core) CNC – PC,
Graphic color display LCD-THT, 24” screen,
RAM Memory 4 GB,
64 GB SSD,
USB connection port,
LAN card RJ45
MICROSOFT WINDOWS embedded,
CAMPROX software,
Cutting thread
Chip conveyor,
Water-cooled spindle,
Centralized grease lubrication system
LED lighting,
Safety barrier,
Automatic chip discharge conveyor,
Compressed air gun
Remote-controlled button MG PILOT,
Processor i7 (quad-core) CNC – PC,
cadXtrack software,
Tool measuring probe,
Hard cutting thread,
Automatic loading unit,
Automatic unloading unit.
| AXES | |||||
| X AXIS | mm | 17000 x 2 | B AXIS MAGAZINE | ° | 360 x 2 |
| Y AXIS | mm | 1100 x 2 | C EKSEN / C AXIS | ° | 360 x 2 |
| Z AXIS | mm | 800 x 2 | A EKSEN / A AXIS | ° | ±125 x 2 |
| POSITIONING SPEED | |||||
| X AXIS | m/dk | 100 x 2 | B AXIS MAGAZINE | °/sn | 360 x 2 |
| Y AXIS | m/dk | 70 x 2 | C AXIS | °/sn | 180 x 2 |
| Z AXIS | m/dk | 60 x 2 | A AXIS | °/sn | 125 x 2 |
| SPINDLE | TOOL CHANGER | ||||
| SPINDLE MOTOR POWER | kW | 18 - 20 x 2 | NUMBER OF TOOLS | (8 + 1)x2 | |
| SPINDLE SPEED | RPM | 24000 x 2 | MAXIMUM TOOL LENGTH | mm | 130 |
| SPINDLE TYPE | HSK F63 | MAXIMUM TOOL DIAMETER | mm | 50 | |
| PROCESSING CAPACITY | WORKPIECE CLAMPING | ||||
| WORKPIECE DIMENSIONS | mm | 400 x 400 | NUMBER OF STANDARD CLAMPS | 8 x 2 | |
| WORKPIECE LENGTH | mm | 17000 x 2 | MAXIMUM NUMBER OF CLAMPS | 8 x 2 | |
| SAW - WEIGHT | Ø - KG | 500 - 15000 | |||

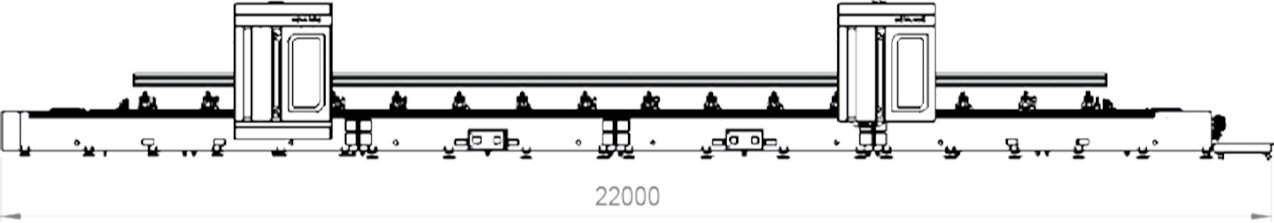

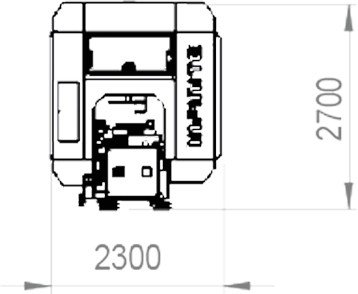

| OVERALL DIMENSIONS (WIDTH, LENGTH, HEIGHT) (optional measurements) | mm | 22000x2300x2700 | |||
