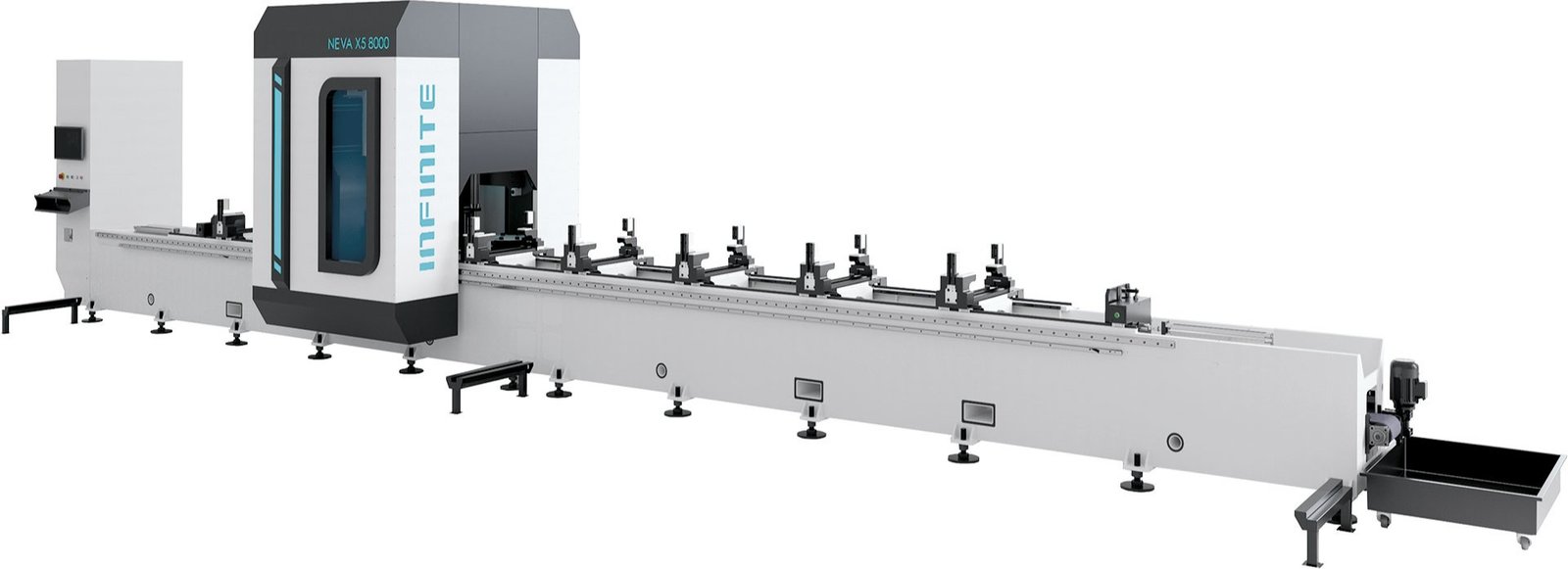

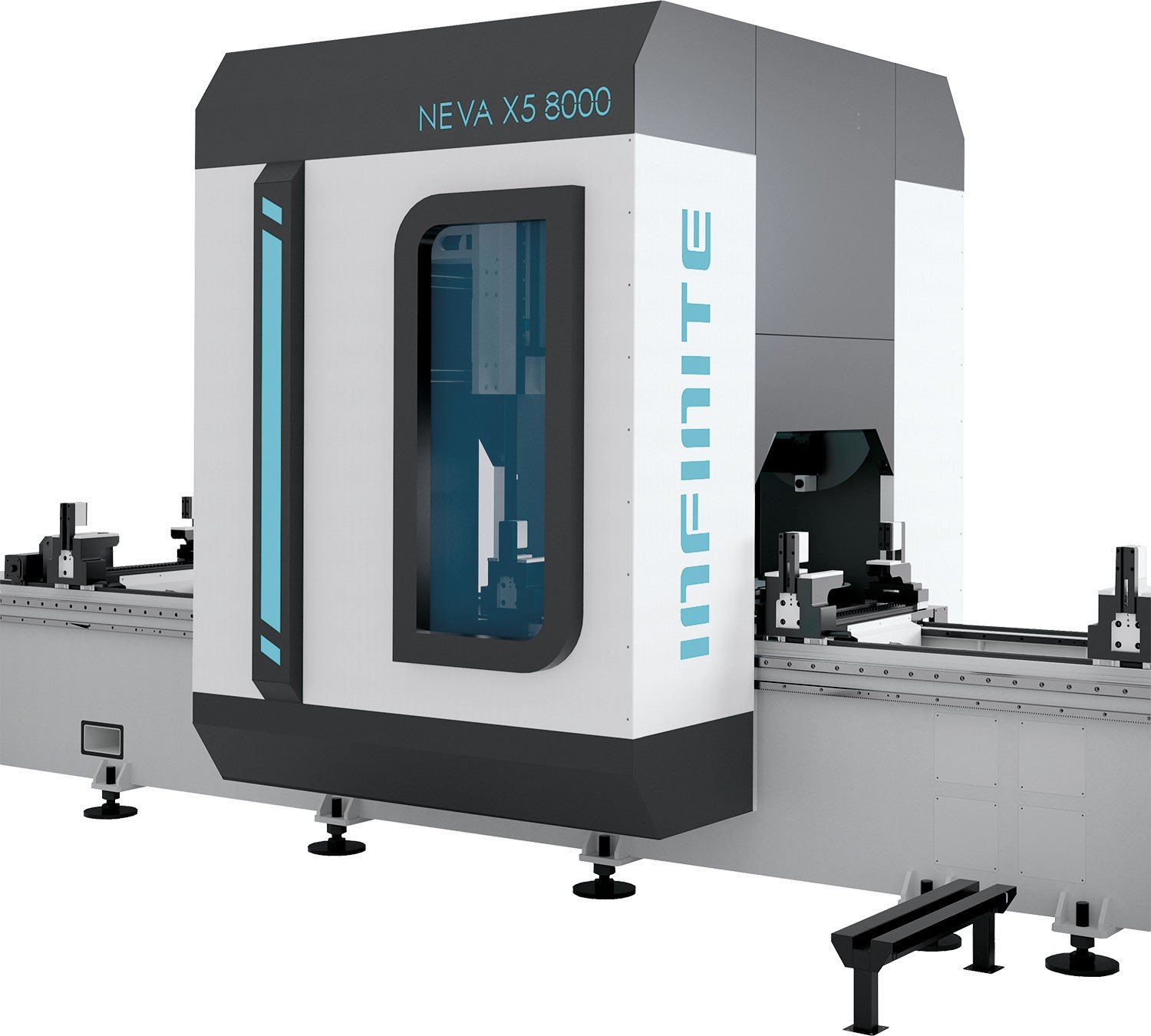

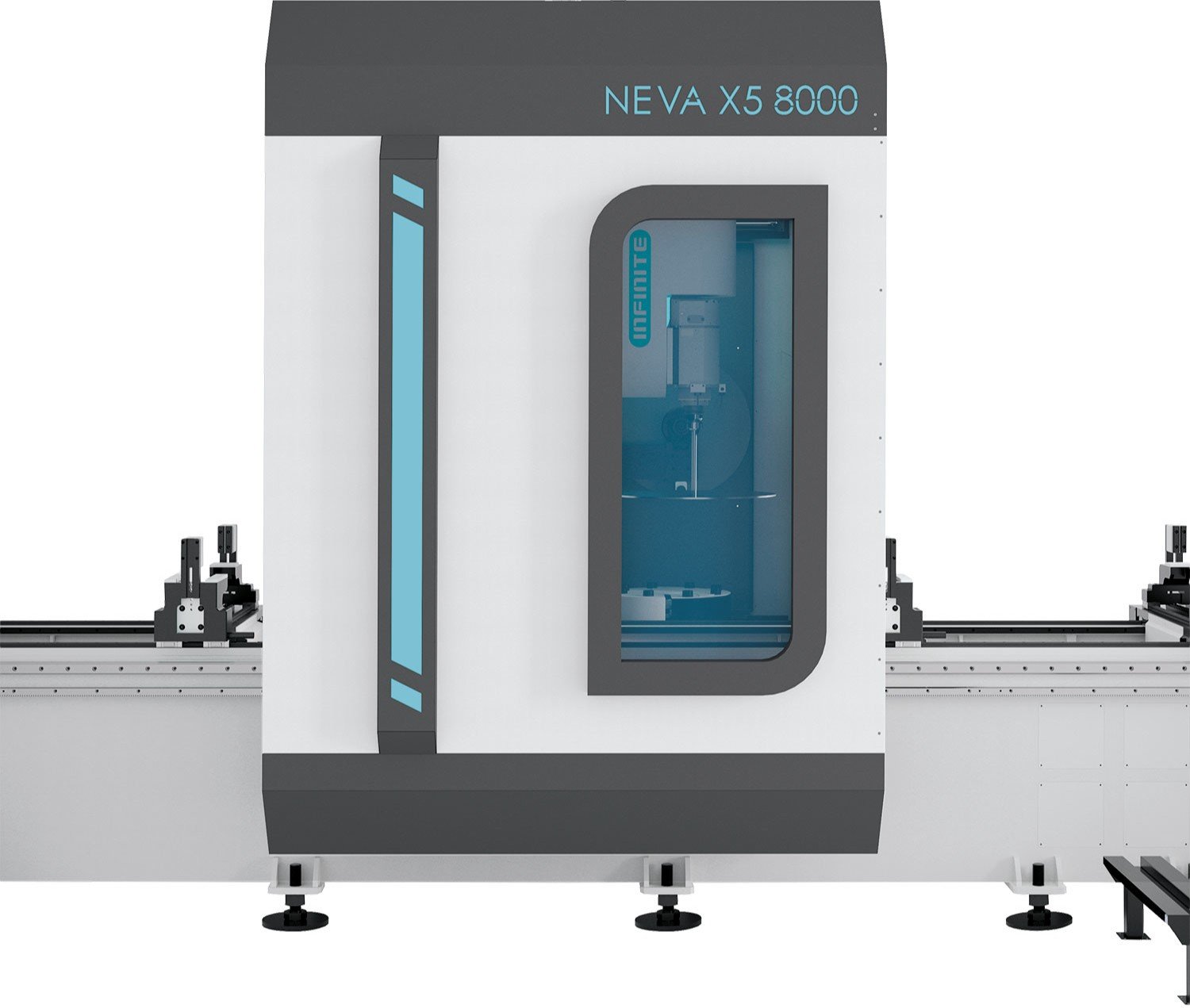

NEVA X5P 5 AXIS

5-AXIS CNC MACHINING CENTER

Milling, Drilling and Cutting Processes for Aluminum Profiles

GET A QUOTE +

5 AXES Processing Capacity

HIGH SPEED Positioning

AUTOMATIC LOADING Option

WATER-COOLED Spindle

CENTRAL GREASE Lubrication

CHIP CONVEYOR System

STANDARD FEATURES

Automatic vise positioning on the X-axis
Hand P independent axes for automatic vise and workpiece reference stopping positioning
Capability to machine on 3 surfaces in 4 axes
Independent motor-driven vises
Graphic color display LCD-THT, 24” screen
Automatic chip discharge conveyor
Processor i3 (dual-core) CNC – PC
Wi-Fi connection handwheel
MICROSOFT WINDOWS embedded
Centralized grease lubrication system
RAM Memory 4 GB
64 GB SSD
USB connection port
LAN card RJ45
CAMPROX software
Cutting thread
Chip conveyor
Water-cooled spindle
LED lighting
Safety barrier
Compressed air gun

OPTIONS

Remote-controlled button MG PILOT
Processor i7 (quad-core) CNC – PC
cadXtrack software
Tool measuring probe
Hard cutting thread
Automatic loading unit
Automatic unloading unit

AREA OF USE

Milling, Drilling and Cutting Processes for Aluminum Profiles

TECHNICAL SPECIFICATIONS

AXES		7000	8000	9000	11000
X Axis	mm	7000	8000	9000	11000
Y Axis	mm	1100	1100	1100	1100
Z Axis	mm	800	800	800	800
B Axis Magazine	°	360	360	360	360
C Axis	°	360	360	360	360
A Axis	°	125±	125±	125±	125±
POSITIONING SPEED
X Axis	m/min	100	100	100	100
Y Axis	m/min	70	70	70	70
Z Axis	m/min	60	60	60	60
B Axis Magazine	°/sec	360	360	360	360
C Axis	°/sec	-	-	-	-
A Axis	°/sec	180	180	180	180
SPINDLE
Spindle Motor Power	kW	11-13	11-13	11-13	11-13
Spindle Speed	RPM	24000	24000	24000	24000
Spindle Type	-	HSK F63	HSK F63	HSK F63	HSK F63
PROCESSING CAPACITY
Workpiece Dimensions	mm	400 x 400	400 x 400	400 x 400	400 x 400
Workpiece Length	mm	7000	8000	9000	11000
TOOL CHANGER
Number of Tools	mm	8 x 2	8 x 2	8 x 2	8 x 2
Maximum Tool Length	mm	130	130	130	130
Maximum Tool Diameter	-	50	50	50	50
WORKPIECE CLAMPING
Number of Standard Clamps	-	8	8	8	8
Maximum Number of Clamps	-	8	8	8	8
SAW - WEIGHT	Ø - KG	500 - 9000	500 - 9500	500 - 10000	500 - 11000

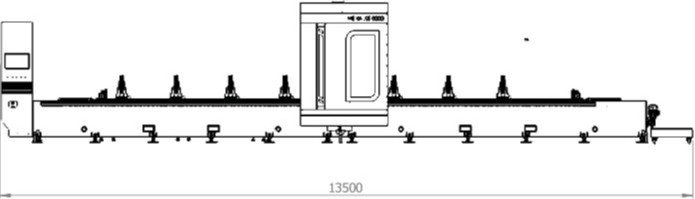

Overall Dimensions (Width, Length, Height)	mm	9500 x 2250 x 2700	10500 x 2250 x 2700	11500 x 2250 x 2700	12000 x 2250 x 2700
